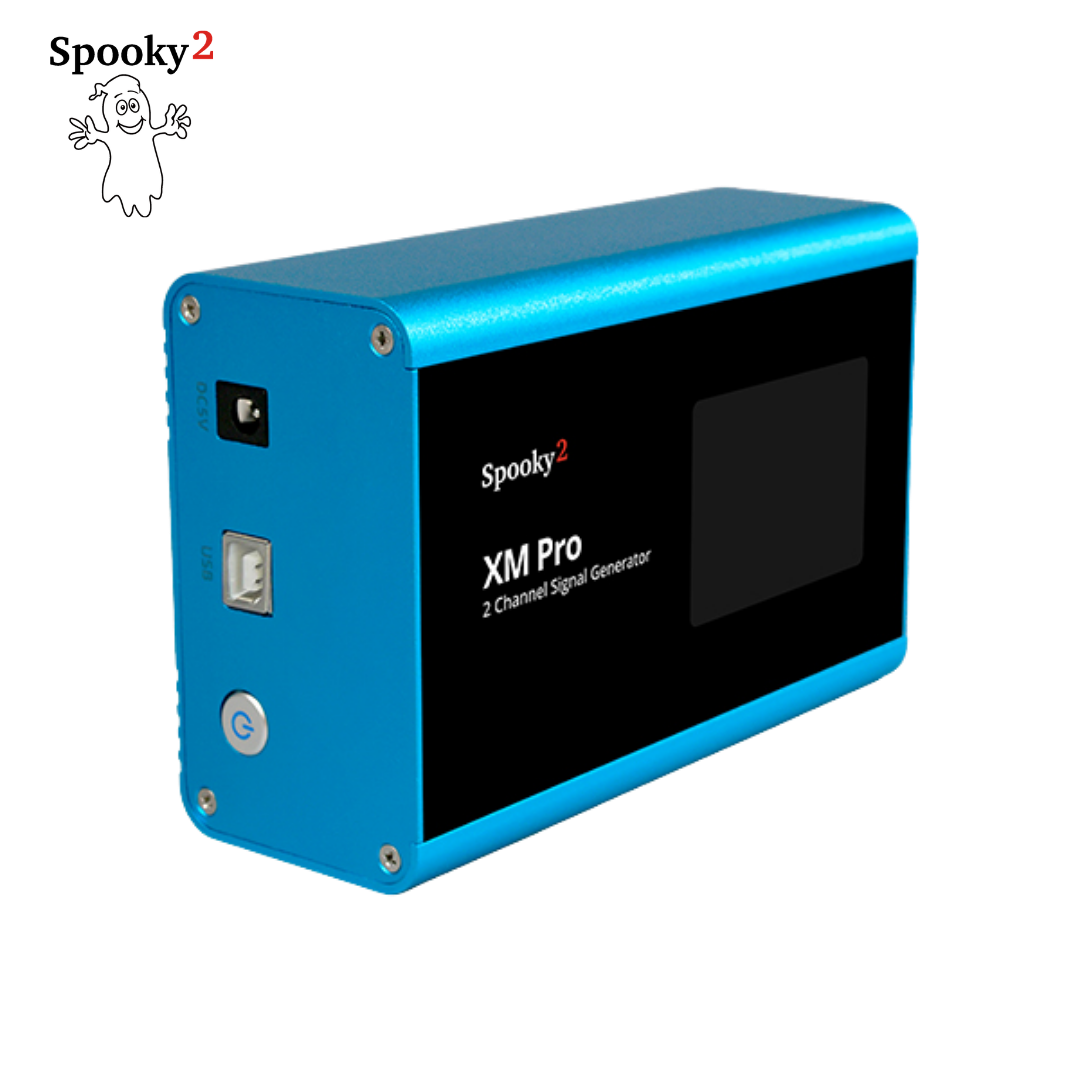

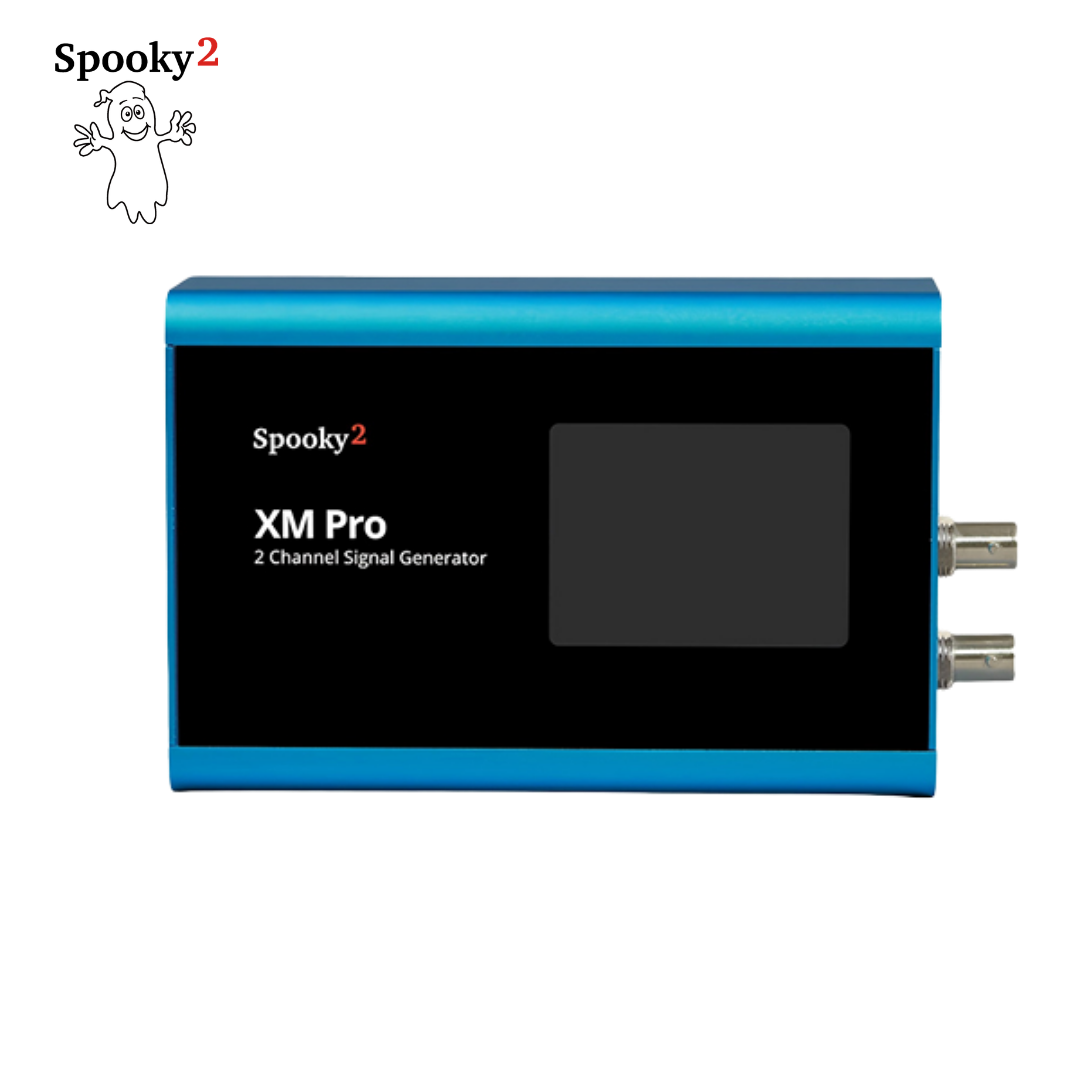

Spooky2 XM Pro – Advanced Transmitter of Electronic Signals

Product Specifications

• Product Type: Advanced transmitter of electronic signals
• Product Category: Transmitters of electronic signals
• Signal Channels: 2 independent output channels
• Frequency Range: 0–10 MHz
• Frequency Resolution: 10 µHz
• Output Current: Up to 200 mA
• Output Voltage: Up to 20 V
• Amplitude Range: 10 mVp-p to 20 Vp-p
• Amplitude Resolution: 40 mV
• Output Impedance: 50 Ω ± 2.5%
• Duty Cycle Range: 0.1%–99.9%
• Phase Adjustment Range: 0.1%–99.9%
• Waveforms: Sine, square, sawtooth, inverse sawtooth, triangular, damped sine, damped square, and other programmable waveform types
• Signal Control: Output characteristics are determined by programmed frequency, waveform, amplitude, duty cycle, phase, and timing data
• Serial Interface: USB Type-B 2.0

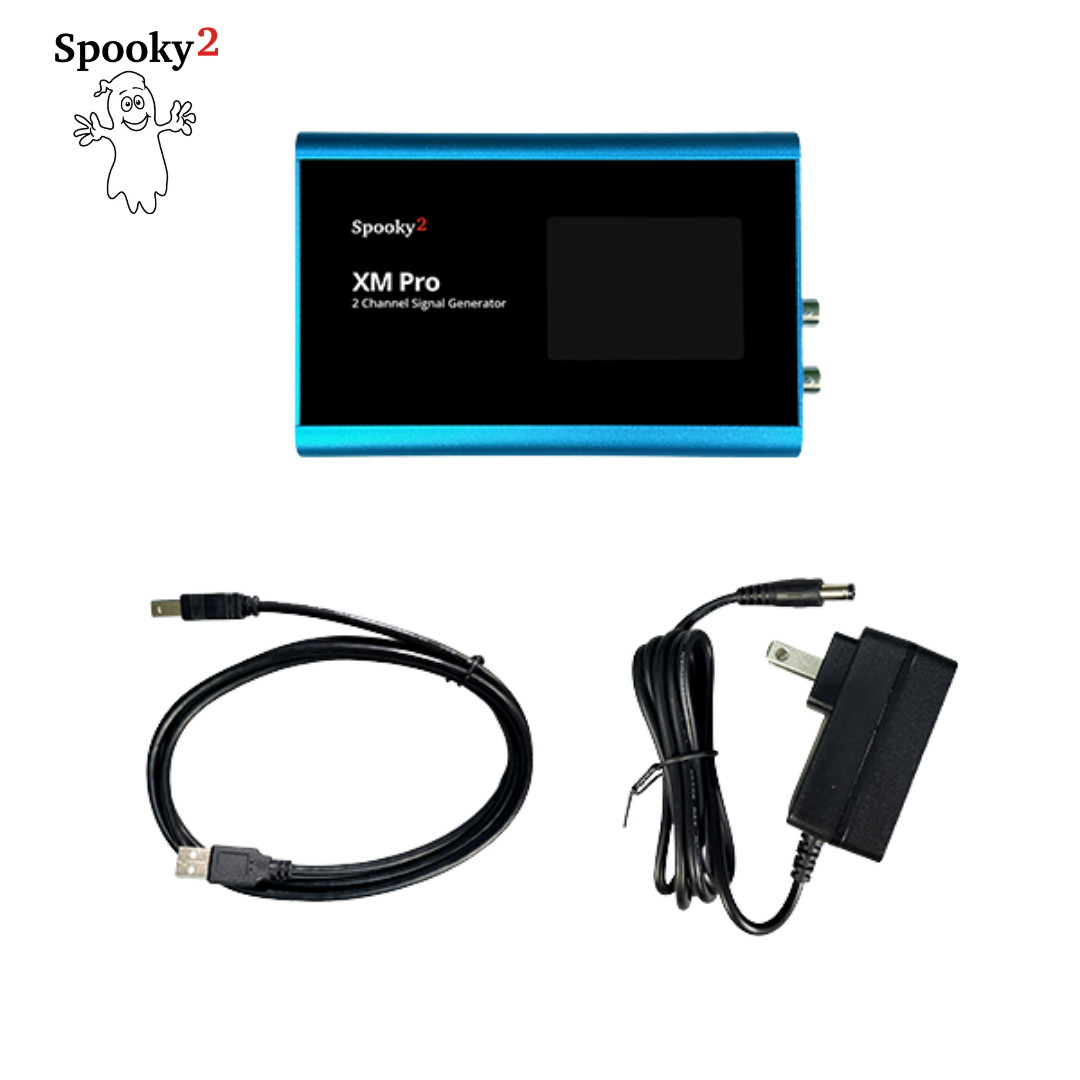

• Power Adapter Input: AC 100–240 V, 50/60 Hz
• Power Adapter Output: 5 VDC, 2.5 A
• Device Input Power: 5 VDC, 1 A
• DC Plug Size: 10 × 5.5 × 2.1 mm
• Dimensions: 144 × 95 × 54 mm
• Net Weight: Approximately 0.41 kg
• Gross Weight: Approximately 0.9 kg
• Operating Environment: Indoor use

Electronic Signal Output

Electronic Signal Output: Generates programmable electrical signals across a 0–10 MHz range, with adjustable waveform, amplitude, duty cycle, and phase characteristics for scientific testing, signal transmission, and electronic experiments.
