Name: Spooky2 GeneratorX Pro – Advanced Transmitter of Electronic Signals
SKU: SP-2B30S-01
Availability: InStock

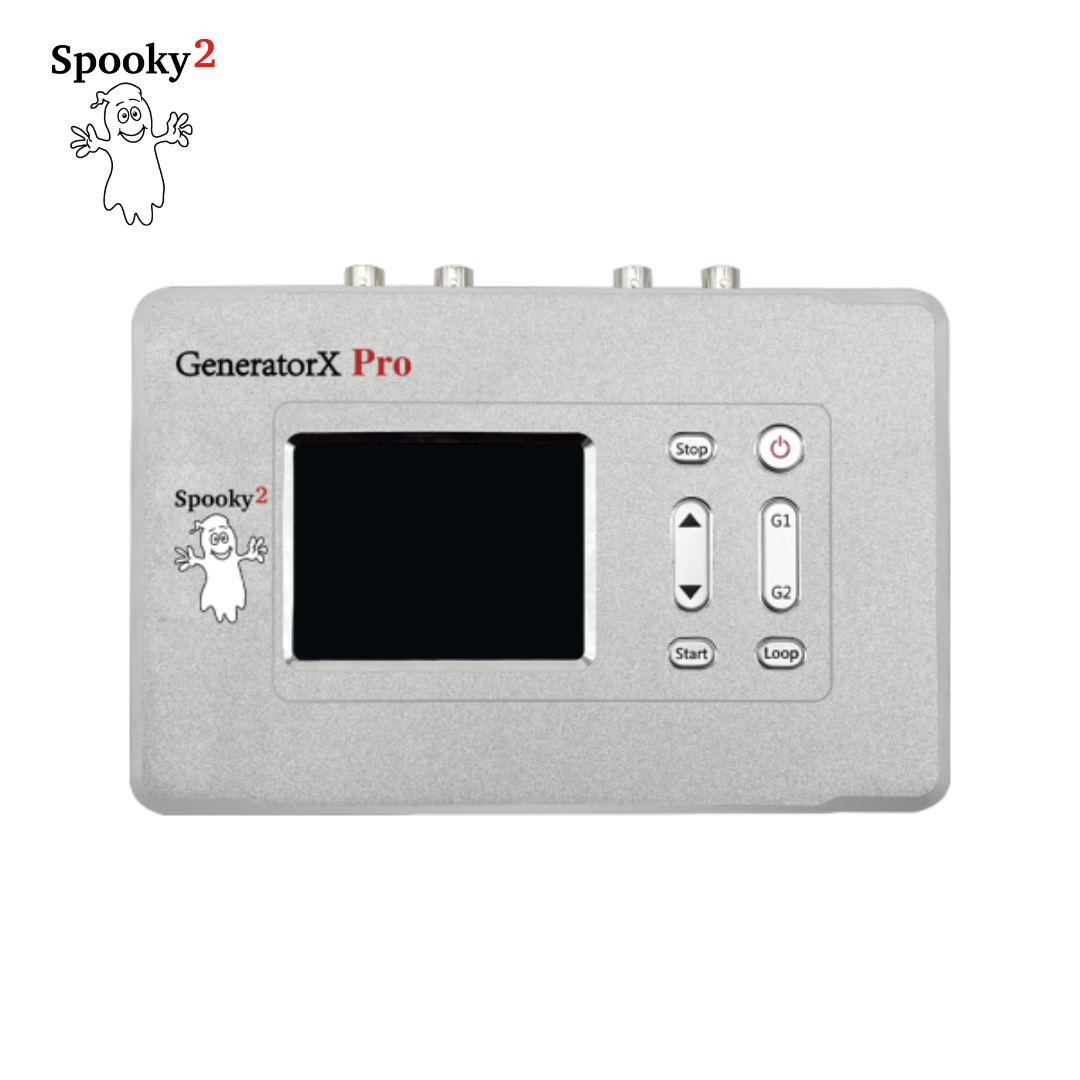

Spooky2 GeneratorX Pro – Advanced Transmitter of Electronic Signals

The Spooky2 GeneratorX Pro is a programmable dual-channel transmitter of electronic signals for scientific research, laboratory experiments, electronic testing, and technical demonstrations. It generates controlled electrical signals that can be converted by compatible equipment into electromagnetic, optical, electrical, or other measurable outputs.

Description
Reviews (0)
Shipping & Delivery

Description

Specifications

Power Adapter 12VDC 2A
Configuration: 2 x Independent DDS generators
Output Short Circuit Protection: Yes
Offline (Stand-alone) Operation: Yes
USB speed: 115200 bps
Maximum Offline Program Count: 30
Maximum frequencies per program: 200
Microprocessors: 2 x 266 MHz ARM. 1 x 16 MHz advanced STM8 core CPU
Output waveform: 10 bits x 1024 bits
Sampling Rate: 266 MSPS
Display: 3.2” TFT True Color LCD
Display Resolution: 320 x 240 bit
Maximum Amplitude: 20vpp
Amplitude Resolution: 0.01v
Output Impedance: 50 Ω
Frequency Range: 0 – 40 MHz for all waveforms
Frequency Resolution: 0.00001 Hz up to 40 kHz. 0.01 Hz above 40 kHz
Modulation Method: AM (Out 2 modulates Out 1)
Measurement Detection: Current and Phase Angle
Measurement Method: High-side Detection
Measurement Frequency Range: 100 Hz – 40 MHz
Measurement Resolution: 16 bits
Current detection resolution: 3.4uA
Phase angle detection resolution: 0.0015 degrees
