Spooky2 Electric Discharge Tube Kit

Product Specifications

• Product Type: Non-lighting electric discharge tube kit

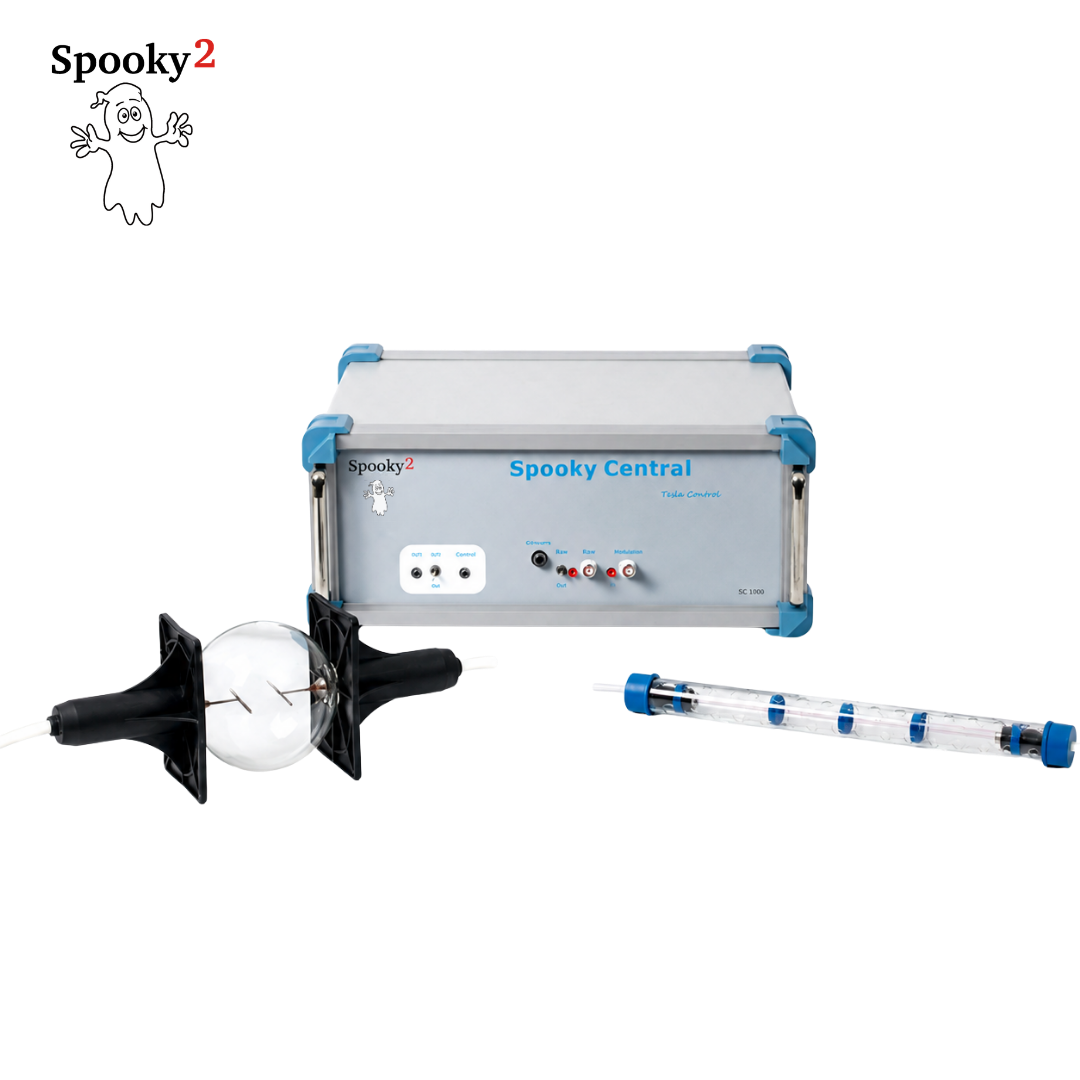

• Included Discharge Tubes: 1 round discharge tube and 1 straight discharge tube
• Primary Function: Visual indication and observation of electromagnetic field output through electric gas discharge
• Tube Type: Sealed transparent electric discharge tubes
• Lighting Purpose: Not intended for general illumination
• Power Input: AC 100–240 V, 50/60 Hz
• Rated Input Power: 60 W
• Mains Voltage Tolerance: 85–250 VAC
• Signal Input Voltage: 5 VDC
• Signal Input Frequency Range: 100 kHz–3.5 MHz
• Modulation Input: 5 VDC, optional
• Modulation Frequency Range: 100 kHz–3.5 MHz
• High-Voltage Output: Up to 6 kV
• Maximum Output Current: ≤30 mA
• High-Voltage Output Power: Up to 30 W
• Discharge Tube Output Power: Up to 40 W RMS
• Operating Frequency Range: 100 kHz–3.5 MHz
• Connection Method: Wired high-voltage connection
• Control Method: Electrical output is controlled by signal data supplied through the electronic control unit
• Application: Electric discharge observation, electromagnetic field indication, comparative field testing, and scientific demonstrations
• Operating Environment: Indoor use

Discharge Output

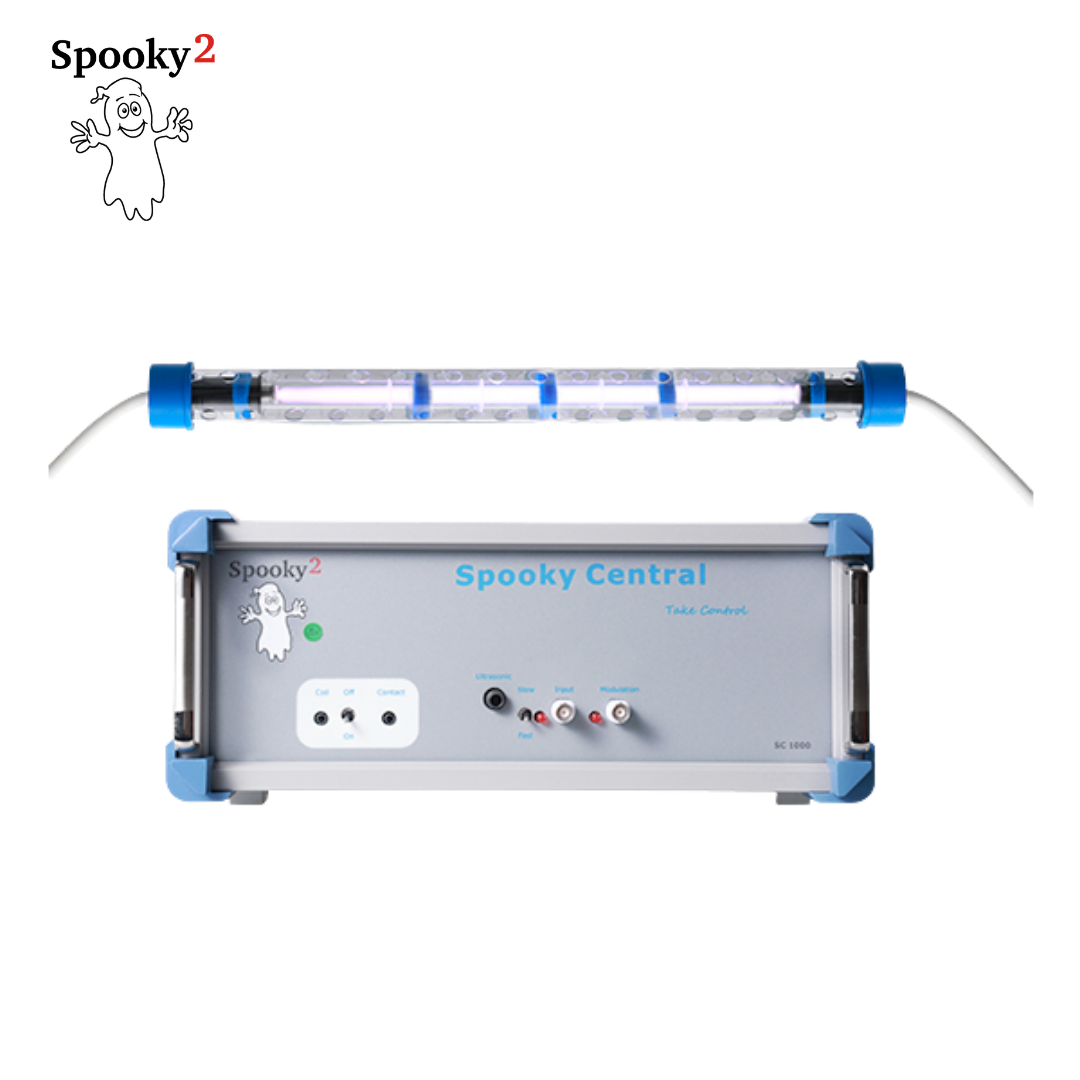

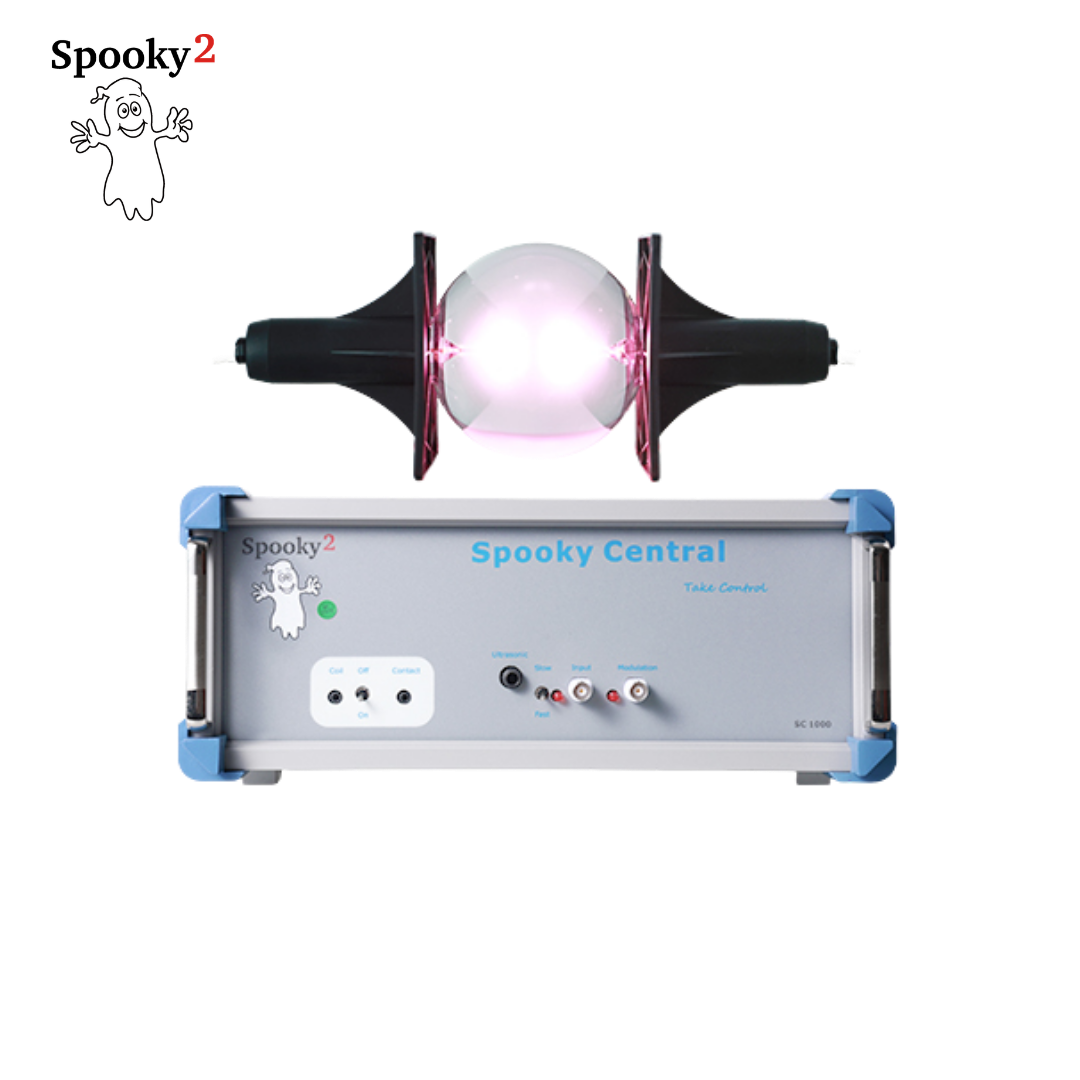

Discharge Output: The electronic control unit supplies high-voltage electrical output to the connected round or straight discharge tube. The electrical signal causes ionization inside the sealed tube, producing a visible discharge that can be used to observe and compare electromagnetic field presence, distribution, and relative intensity.
